ACU.OBJECTDEFINITION

Overview

Use the ACU.OBJECTDEFINITION function to check for definitions of Acumatica DAC objects.
It returns the IDs, data types, and optionality of the specified object and its description.

It can be helpful when constructing queries with the ACU.QUERY function.

Syntax

CODE

=ACU.OBJECTDEFINITION(
    ConnectionName,
    Object,
)

Arguments

Argument

Required/Optional

Description

ConnectionName

Optional

Provide one of the following values:

Connection name as defined in Connection Manager.
Velixo range expression defining a set of connection names.
An array of settings as described in the Multiple connections per formula article. We recommend using the VX.SETTINGS function to construct the array.

OR

Omit the argument to return results for all compatible connections with default aggregation settings.

Object

Required

DAC object name.

Use the ACU.EXPANDOBJECTRANGE function to retrieve the list of DAC objects.

Example

CODE

=ACU.OBJECTDEFINITION(
    "Acumatica",
    B12
)

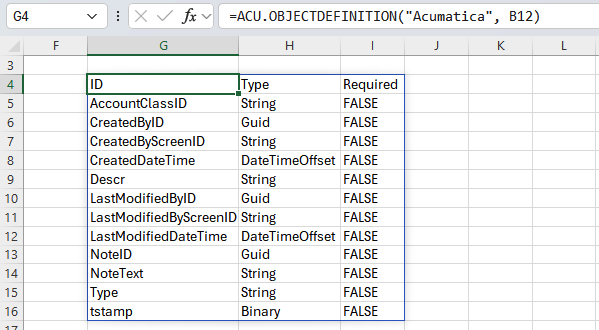

Description: Returns the set of IDs, data types, and optionality for the object AccountClass listed in cell B12.

Result:
