Multiple connections per formula

Overview

This feature allows users to retrieve and combine data from multiple connections directly within supported Velixo functions. You can use a Velixo filtering expression (for instance, * for all available connections) or specify a 2D array for the ConnectionName argument to aggregate results using one of the following modes:

• sum - for retrieving totals for multiple connections

• average - for retrieving averages for multiple connections

• min / max - e.g., for performance comparison

• concat

• stack-horizontally - e.g., for data reconciliation/comparison

• stack-vertically - e.g., for retrieving exhaustive lists of objects (can be combined with SORT(UNIQUE(...)))

• first - returns the first result for any of the connections that does not trigger an error

• ensure-identical - returns a value only if it’s identical across all queried connections; otherwise, returns an error

• set - combines the results from queried connections, removes duplicates, and sorts the results.


This functionality supports a range of scenarios, including consolidating financial data across companies, merging lists, or combining data from multiple environments. For instance, you can get the turnover by specific account for all connections in the workbook, or get all projects for connections whose names start with “Construction”.

Parameters

Parameter	Required / Optional	Description
ConnectionName	Required	Velixo range expression containing connection names.
AggregationMode	Optional	Aggregation mode selection. Valid values: sum, average, min, max, concat, stack-horizontally, stack-vertically, first, ensure-identical ,set Default value: See the Default aggregation mode section
GlobalAggregation	Optional	If TRUE, then sum, average, min, max, and concat collapse all values, including dynamic-aware results of individual functions. Example: You run three connection-scoped functions, each returning 100 values. If you specify sum with GlobalAggregation = TRUE, you will get the total sum of all 300 values instead of the default spill range. Default value: FALSE
CaseInsensitiveAggregation	Optional	Specifies whether to compare normalized (lowercase) or original strings in min and max modes. Default value: TRUE
TrimmedAggregation	Optional	Specifies whether whitespace surrounding the strings should be ignored in comparison in min and max modes. The function returns original values regardless of the setting. Default value: TRUE
ConcatSeparator	Optional	Defines a separator character for the concat aggregation mode. By default, the separator defined in the Options menu is used.

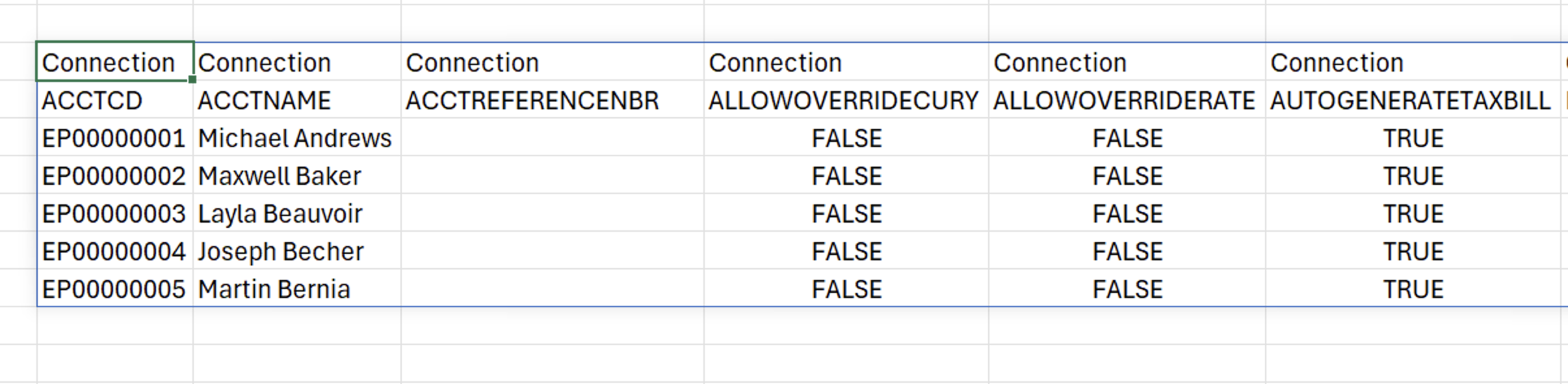

IncludeConnectionName	Optional	If TRUE, in the stack-horizontally mode, adds a row with connection names above the returned datasets. In the stack-vertically mode, it adds a column containing connection names. Ignored in other modes. The connection name is repeated in every row (stack-vertically) or column (stack-horizontally) of its dataset. If the dataset for the connection is empty, a row/column with the connection name is still displayed. TRUE always displays the name column, even when the query returns a single connection or a single company within a connection. When the argument is omitted, the column appears when the query spans more than one connection or company, and is hidden for a single connection. Accepted values: TRUE, FALSE Default value: shown only for multiple connections/companies in stack-horizontally and stack-vertically modes; FALSE for set; ignored in other modes
StrictErrorMode	Optional	If set to FALSE, and the function returns an error for a specific connection and input value, handle it depending on the aggregation mode and the output value type: for sum, average, min, max: replace the invalid value with one of the following, “neutral” values: 0 for a number, FALSE for a boolean, '1900.01.01' for a date, '' for a string for concat: replace the invalid value with an empty string for stack-horizontally, stack-vertically: a replace the invalid value with a 1x1 empty array. If set to TRUE, and the function returns an error for a specific connection and input value, the error is returned in the aggregated function output for this particular value. Default value: TRUE This parameter can be useful in scenarios where one or more of the connections return an error for a particular formula. Setting the parameter to TRUE will ensure that the errors are not displayed and that the data from the other connections is aggregated correctly.
ExcludeEmptyResults	Optional	If set to TRUE, connections with no results are excluded from the output. Connections returning data or errors remain. If set to FALSE, empty results appear in the output as #N/A. Default values: stack-… aggregation modes - TRUE other aggregation modes - FALSE

Building the ‘ConnectionName’ argument

The ConnectionName argument accepts a two-column array: setting names in the first column and their values in the second. You can provide this array in three ways.

Method 1 – VX.SETTINGS function (recommended)

Pass setting names and values as alternating arguments of VX.SETTINGS. Unlike an array constant, each value can be a literal, a cell reference, or a formula.

The following array constant fails because it contains a cell reference. Excel rejects the formula when you try to enter it:

{"Connection",B1;"IncludeConnectionName",FALSE}

The VX.SETTINGS formula, however, enables such a scenario:

VX.SETTINGS("Connection",B1,"IncludeConnectionName",FALSE)

For example:

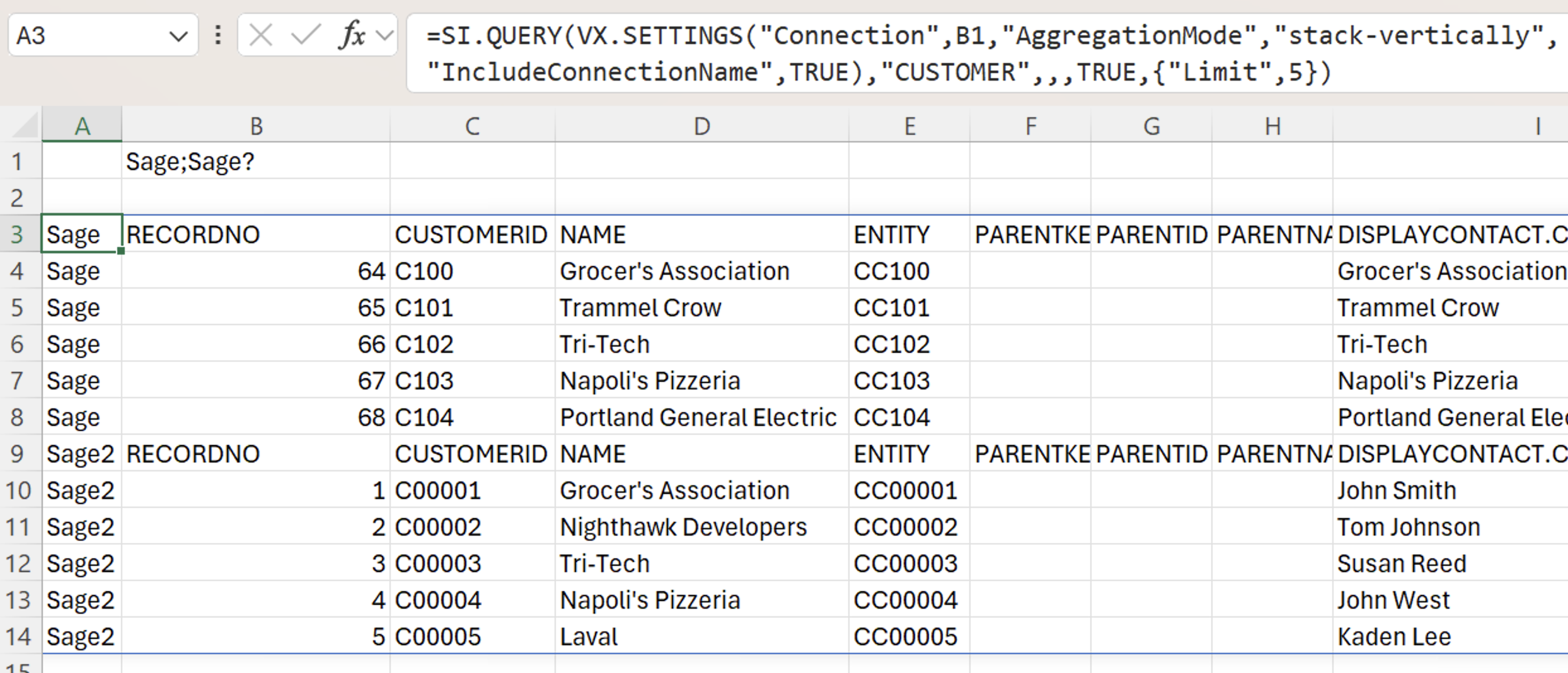

=SI.QUERY(VX.SETTINGS("Connection",B1,"AggregationMode","stack-vertically","IncludeConnectionName",TRUE),"CUSTOMER",,,TRUE,{"Limit",5})

Description: Queries the connections named in cell B1, stacks the results vertically, and adds a connection name column. B1 can contain a single connection name or a Velixo range expression, such as a semicolon-separated list of names.

Method 2 – Two-column cell range

To keep the settings visible on the worksheet, enter setting names in one column and their values in the adjacent column. Then provide the range (for example, A1:B8) as the ConnectionName argument. Value cells can contain formulas, for example, a formula that builds the connection name from another cell. You can list every setting and leave a value cell empty to use that setting's default. You can also name the range; the first example in this article uses a range named Connection.

Method 3 – Array constant

Type the settings directly in curly braces, with commas between a name and its value and semicolons between rows: {"Connection","*";"AggregationMode","sum"}. Use this method only when every name and value is a literal.

Default aggregation mode

The default value of the AggregationMode parameter depends on the type of output of the function used. Below, see a table listing supported functions and their corresponding default aggregation modes.

Unsupported scenarios

Unsupported functions

The following functions do not support the multiple connection functionality:

• SI.QUERYFILTER

• SI.XQUERYFILTER

Query function limitations

The SI.QUERY and SI.XQUERY functions do not support multiple connections in the following scenarios:

• The function uses Table Mirroring; the TableOutputCell argument is provided in the function's formula.

• sum or average is selected as the AggregationMode parameter value in the ConnectionName argument of the function’s formula.

Drilldown limitations

The following Drilldown-related scenarios are currently not supported or limited:

• Drilling into the Excel sum of results stacked horizontally or vertically

• Drilling into results stacked horizontally or vertically in case of multi-column and/or multi-row results

• Drilling into the sum of results with the GlobalAggregation parameter set to TRUE in case of multi-column and/or multi-row results.

Examples

All connections in the workbook, sum aggregation mode

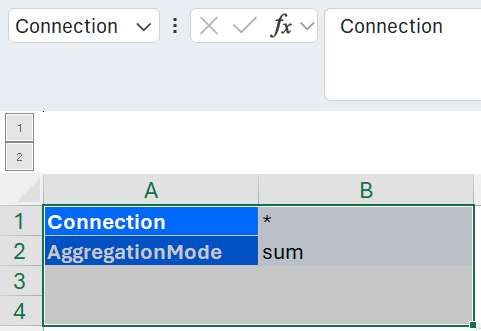

The function in this example uses a range named “Connection" as the function’s ConnectionName argument.

The ConnectionName argument in the connection name is set to * - a Velixo filtering expression that returns all possible values, in this case, connection names.

The AggregationMode is set to sum.

The resulting ConnectionName argument is equivalent to the following 2D array:

{"Connection", "*"; "AggregationMode", "sum"}

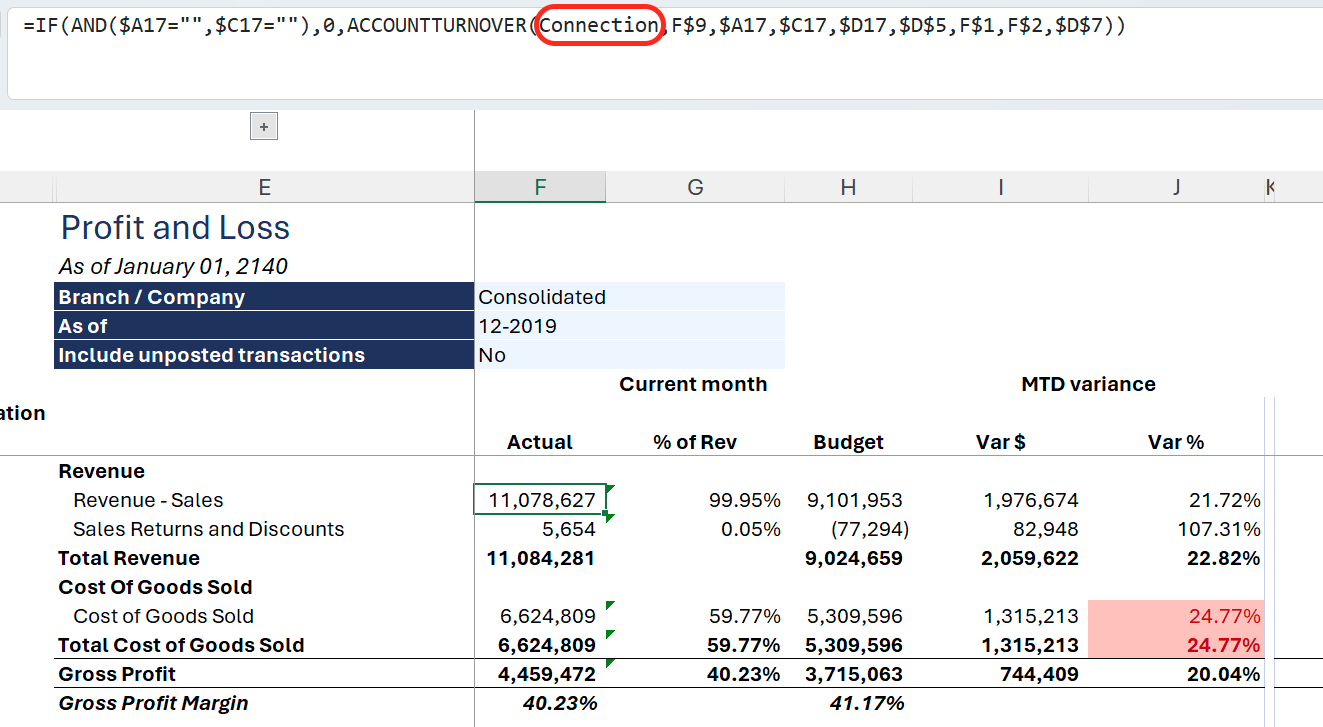

As a result, the function returns a summary of values for all connections active in the workbook.
