STACK.EXPANDUNITRANGE

Overview

The STACK.EXPANDUNITRANGE function returns sorted names of units of measure within a given project matching the search criterion.

=STACK.EXPANDUNITRANGE(
    ConnectionName,
    Project,
    UnitOfMeasure
)

Argument	Required/Optional	Description
`ConnectionName`	Optional	Provide one of the following values: Connection name as defined in Connection Manager. Velixo range expression defining a set of connection names. An array of settings as described in the Multiple connections per formula article. We recommend using the VX.SETTINGS function to construct the array. OR Omit the argument to return results for all compatible connections with default aggregation settings.
`Project`	Required	Project name. Use the STACK.EXPANDPROJECTRANGE function to retrieve the list of STACK projects.
`UnitOfMeasure`	Optional	A search expression for filtering units of measure, uses Velixo filtering techniques. If not specified, returns all units.

Argument

Required/Optional

Description

ConnectionName

Optional

Provide one of the following values:

Connection name as defined in Connection Manager.
Velixo range expression defining a set of connection names.
An array of settings as described in the Multiple connections per formula article. We recommend using the VX.SETTINGS function to construct the array.

Omit the argument to return results for all compatible connections with default aggregation settings.

Project

Required

Project name.

Use the STACK.EXPANDPROJECTRANGE function to retrieve the list of STACK projects.

UnitOfMeasure

Optional

A search expression for filtering units of measure, uses Velixo filtering techniques.

If not specified, returns all units.

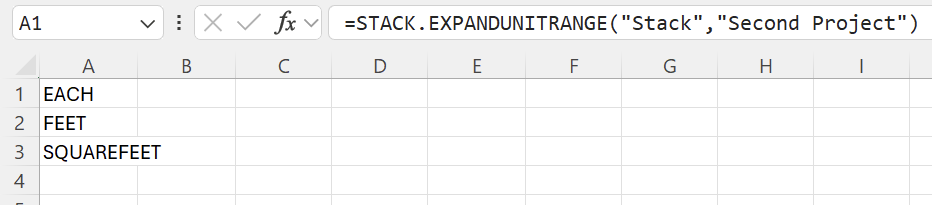

=STACK.EXPANDUNITRANGE(
    "Stack",
    "Second Project"
)

Description: Returns all units of measure used in the Second Project project for the connection named Stack.

Result:
