STACK.EXPANDTAKEOFFLABELVALUES

Overview

The STACK.EXPANDTAKEOFFLABELVALUES function returns a list of values used within a given label, within a given takeoff in a project, matching the search criterion.

Syntax

CODE

=STACK.EXPANDTAKEOFFLABELVALUES(
    ConnectionName,
    Project,
    Takeoff,
    Label
)

Arguments

Argument	Required/Optional	Description
`ConnectionName`	Optional	Provide one of the following values: Connection name as defined in Connection Manager. Velixo range expression defining a set of connection names. An array of settings as described in the Multiple connections per formula article. We recommend using the VX.SETTINGS function to construct the array. OR Omit the argument to return results for all compatible connections with default aggregation settings.
`Project`	Required	Project name. Use the STACK.EXPANDPROJECTRANGE function to retrieve the list of STACK projects.
`Takeoff`	Required	Takeoff name. Use the STACK.EXPANDTAKEOFFRANGE function to retrieve the list of STACK takeoffs.
`Label`	Required	Label name. Use the STACK.EXPANDLABELRANGE function to retrieve the list of STACK tags.

Example

CODE

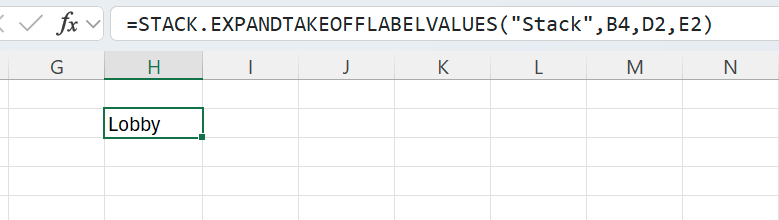

=STACK.EXPANDTAKEOFFLABELVALUES(
    "Stack",
    B4,
    D2,
    E2
)

Description: Returns all label values used in the label contained in cell E2 in the takeoff listed in cell D2 in the project listed in cell B4 for the connection named Stack.
