STACK.EXPANDTAKEOFFTAGVALUES

Overview

The STACK.EXPANDTAKEOFFTAGVALUES function returns a list of values used within a given tag, within a given takeoff in a project, matching the search criterion.

Syntax

=STACK.EXPANDTAKEOFFTAGVALUES(
    ConnectionName,
    Project,
    Takeoff,
    Tag
)

Arguments

Argument	Required/Optional	Description
`ConnectionName`	Optional	Provide one of the following values: Connection name as defined in Connection Manager. Velixo range expression defining a set of connection names. An array of settings as described in the Multiple connections per formula article. We recommend using the VX.SETTINGS function to construct the array. OR Omit the argument to return results for all compatible connections with default aggregation settings.
`Project`	Required	Project name. Use the STACK.EXPANDPROJECTRANGE function to retrieve the list of STACK projects.
`Takeoff`	Required	Takeoff name. Use the STACK.EXPANDTAKEOFFRANGE function to retrieve the list of STACK takeoffs.
`Tag`	Required	Tag name. Use the STACK.EXPANDTAGRANGE function to retrieve the list of STACK tags.

Example

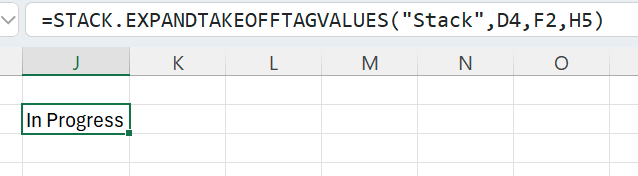

=STACK.EXPANDTAKEOFFTAGVALUES(
    "Stack",
    D4,
    F2,
    H5
)

Description: Returns all tag values used in the tag contained in cell H5 in the takeoff listed in cell F2 in the project listed in cell D4 for the connection named Stack.
