STACK.EXPANDPLANRANGE
Created by Velixo Team, Modified on Fri, 29 Aug at 8:29 AM by Velixo Team
Applies to
Velixo NX 2025.8 or higher
STACK
Introduction
The STACK.EXPANDPLANRANGE function returns sorted names of plans within a given project matching the search criterion.
Syntax
=STACK.EXPANDPLANRANGE(ConnectionName, Project, Plan)
Parameters
Parameter | Required/Optional | Description |
|---|---|---|
ConnectionName | Required | The name of the connection, as specified in the Connection Manager |
Project | Required | Project name. |
Plan | Optional | A search expression for filtering Takeoffs, uses Velixo filtering techniques. If not specified, returns all Takeoffs. |
Example

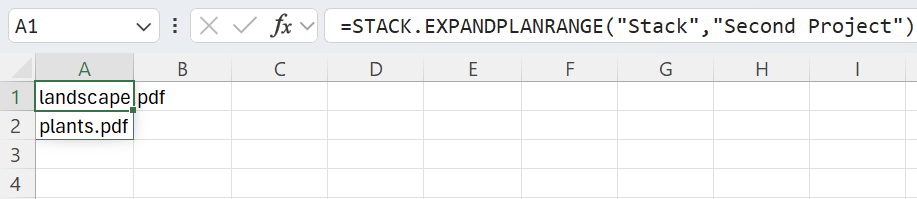

=STACK.EXPANDPLANRANGE("Stack", "Second Project")
Description: Returns all plans in the Second Project project for the connection named Stack.
Result:
